Hydraulic Controlling DTH Drilling Rig with Light Weight High Drilling Efficiency and 3000N.m Max Torque for Mining and Water Well Projects

Name: Hydraulic Controlling DTH Drilling Rig with Light Weight High Drilling Efficiency and 3000Nm Max Torque for Mining and Water Well Projects
Brand: SANROCK
Price: 1 USD

Wholesale Hydraulic Controlling DTH Drilling Rig with Light Weight High Drilling Efficiency and 3000N.m Max Torque for Mining and Water Well Projects from china suppliers

Brand Name : SANROCK

Model Number : SR90

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 15-25days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Drilling Rig

Name : DTH Drilling Rig /Horizontal Directional Drilling Machine

Motor rate : 15kw

Air consumption : 9-12m/min

Hole diameter : 90-160mm

Hole depth : 10-60m

Drill rod size : 89*1500mm/76*1500mm

Max torque : 3000N.m

Rotation speed : 0-80rpm

Thruster flip angle : 10°- 360°

Stroke : 1800mm

Max lifting force : 27.5KN

Max feeding force : 27.5KN

Hydraulic pump type : 540 gear pump

Hydraulic system rated pressure(Max. pressure) : 16Mpa

Tank capacity : 80L

Hydraulic pump Max. flow : 40 L/min

Application : Mining Project,Coal,Ore,Water Well

After-sales service provided : Online support,Video technical support

Feature : Hydraulic Controlling,Light Weight High Drilling Efficiency

Total weight : 900KG

Drill machine size : 3100*800*1250mm

Hydraulic station size : 1400*700*1200mm

Control console size : 50*50*90mm

Contact Now

Multifunctional DTH Drilling Rig Horizontal Directional Drilling Rig Down The Hole Drilling Machine

Product Overview

The Multifunctional Horizontal Directional Drilling (HDD) Rig with DTH Hammer Capability represents a highly advanced and versatile generation of trenchless drilling equipment. Engineered as a single, integrated platform, it performs a wide spectrum of horizontal directional drilling operations across vastly different geological conditions—from soft soils and clays to the hardest rock formations—by seamlessly switching between different drilling tools and modes, with the DTH hammer being its core component for hard rock excavation.

Core Multi-Function Capability

This rig transcends the limitations of single-method machines. Its "multi-function" capability is centered on a modular, multi-mode drill head or power system that can be quickly reconfigured in the field.

Key System Components

Modular Power Pack: Features a combined power unit that supplies high-volume compressed air for the DTH hammer, high-pressure hydraulic flow for the mud motor or rotary head, and pumping capacity for drilling fluids.
Quick-Change Tooling & Attachment System: Allows for rapid field exchange between the DTH hammer assembly, mud motor bottom-hole assembly (BHA), auger stems, and different drill bits.
Advanced, Unified Guidance System: Employs a sophisticated steering and survey tool compatible with all drilling modes, providing consistent accuracy regardless of the method being used.
Multi-Function Drill Pipe: Utilizes dual-purpose drill rods that transmit torque, thrust, and either compressed air or drilling fluid as needed for the active mode.

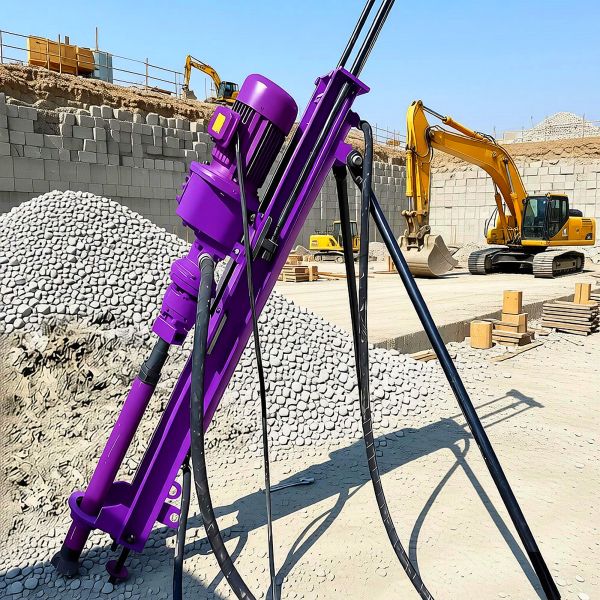

Product Images

Hydraulic Controlling DTH Drilling Rig with Light Weight High Drilling Efficiency and 3000N.m Max Torque for Mining and Water Well Projects

This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos. We welcome more overseas clients to come to our company for negotiation and cooperation.

Technical Specifications

Type	Rotary Drilling Rig
Product Name	Drilling Rig
Applications	Building Energy, Mining, Borehole Drilling Rig

Air consumption: 9-12 m³/min
Hole diameter: 90-160 mm
Hole depth: 10-60 m
Drill rod size: 89×1500 mm / 76×1500 mm
Max torque: 3000 N.m
Rotation speed: 0-80 rpm
Thruster flip angle: 10° - 360°
Stroke: 1800 mm
Max lifting force: 27.5 KN
Max feeding force: 27.5 KN
Hydraulic pump type: 540 gear pump
Hydraulic system rated pressure (Max. pressure): 16 Mpa
Hydraulic pump Max. flow: 40 L/min
Motor rate: 15 kw
Tank capacity: 80 L
Drill machine size: 3100×800×1250 mm
Hydraulic station size: 1400×700×1200 mm
Control console size: 50×50×90 mm
Total weight: 900 KG

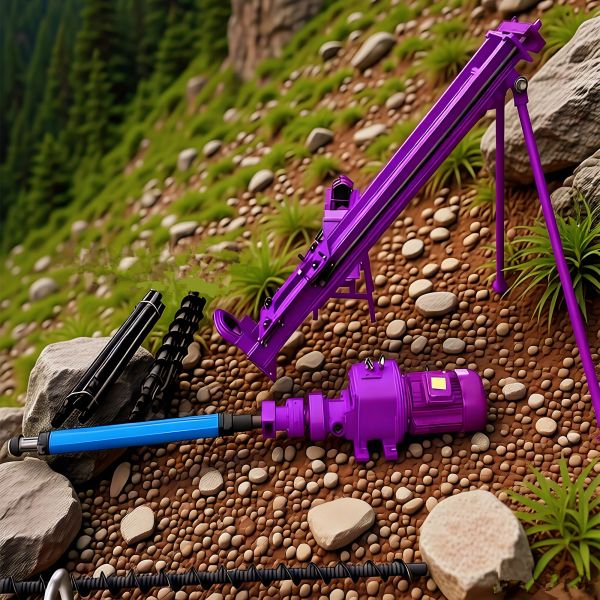

Additional Product Views

Company Profile

1. What can you buy from us?

DTH drilling rig, core drilling rig, reverse circulation drilling rig, highway pile driver, solar pile driver, anchor pile driver, rotary drill rig, Top Hammer drill rig, underground jumbo drill rig, DTH hammer, drill rod, screw air compressor, water well drilling rig, truck mounted water well drilling rig, screw air compressor, piston air compressor, pneumatic rock drill, drill bit, tricone bit, spare parts.

2. Do you provide design drawing and customization services for complete machines and drilling tools?

Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements. This includes 2D and 3D design drawings, delivered in various formats including DWG, PDF, STEP, and IGES. Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

3. How is the shipment? How long does it take?

For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4. How is your quality control?

We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
